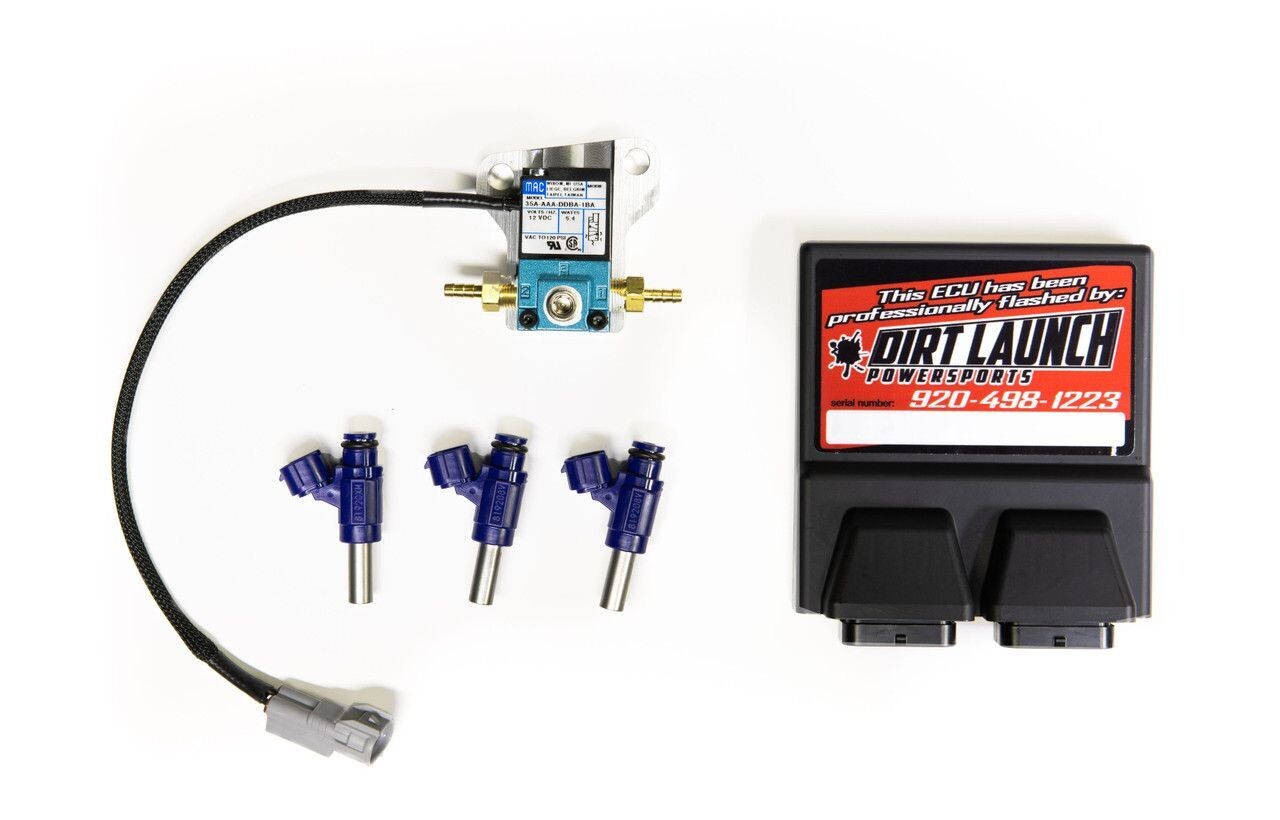

Dirt Launch Powersports Stage 2 Turbo Upgrade for the YXZ1000R

Upgrade your current DLP stage 1 turbo kit to a stage 2

• Utilizes the factory fuel pump with 11-12psi of boost
• Includes larger injectors - DLP 530cc
• Tuning is all done through the factory ECU - no piggy back to mess with
• Electronic boost controller with ECU Boost control
• Compatible with both SS and manual shift models
• 2019+ Sport Shift includes a new ECU

** IMPORTANT NOTE **

• High Boost on stock compression requires 97 or higher octane fuel. This can be achieved by a mix of race fuel and pump gas or with an octane booster such as Boostane
• Upgrading your engine to 9.5:1 Compression allows you to run high boost on high octane pump gas (91-93)

Optional:

• Valve Buckets / Lifters. Stock buckets have shims that can kick out at high RPM under boost. This results in dropping a valve and other damaged engine parts. Our Shimless buckets solve this problem. Shimless buckets or some equivalent valvetrain upgrade required for Stage 2
• High/ Low Boost Harness: This allows you to switch between 12psi and 7psi of boost with the flip of a switch. Allowing you to turn the power down when it's not needed or run 91 octane when race fuel is not available
• Stage 8 locking fasteners, when installed properly, will not allow the turbo mounting bolts to come loose with expansion and contraction with heat cycles of the turbo

Shimless Buckets
