If your YXZ already has some of these upgrades with non-CHP components, please contact us for compatibility.

DLP Stage 3 Turbo Kit for the YXZ takes the proven formula from our Stage 1 and 2 kits, and upgrades the turbo to a Garrett GT2860RS with .86 AR

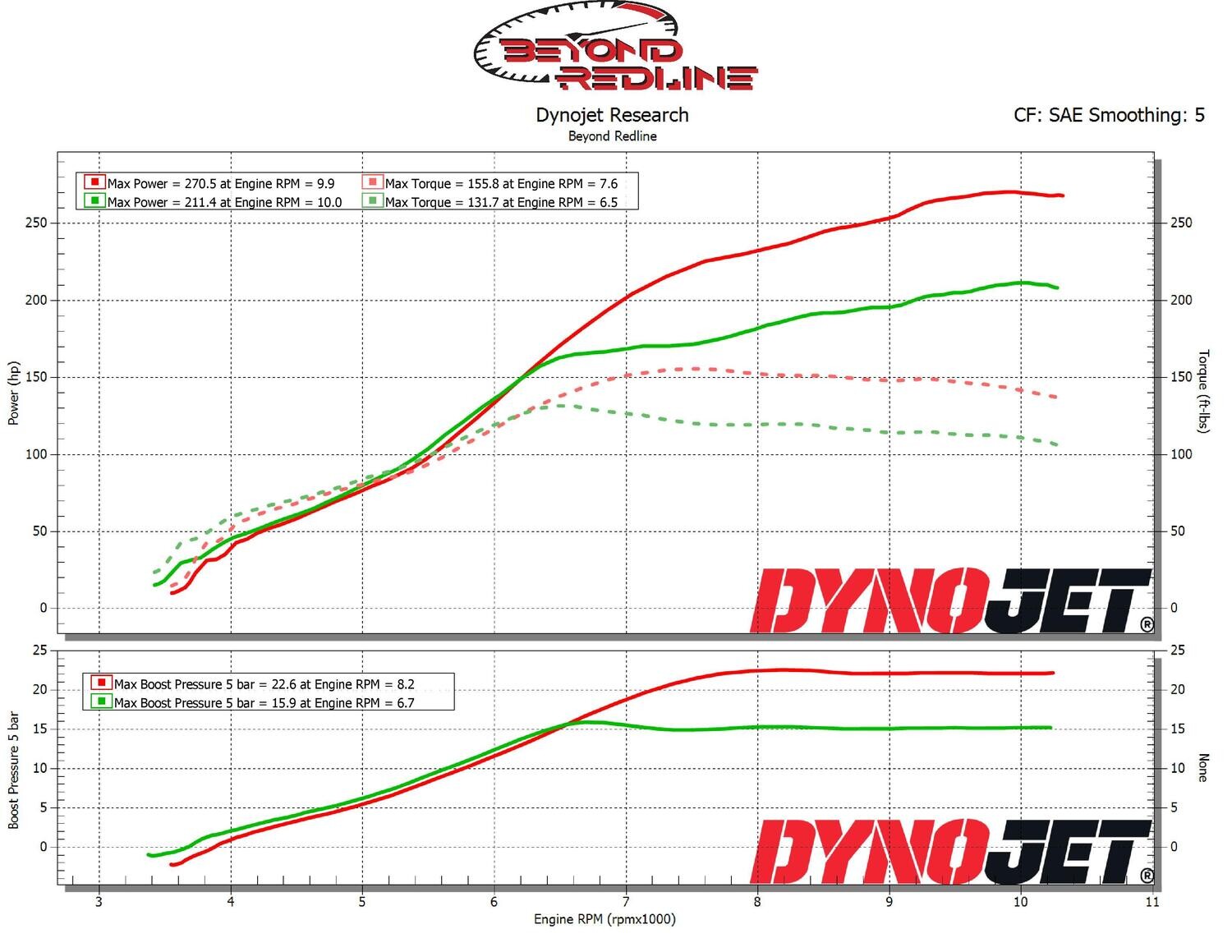

• 270 rear wheel horsepower.
• Built around a 9.5:1 Compression engine which is tuned for pump gas, even at full boost!!
• Fits 2016+ model years Yamaha YXZ1000R
• Compatible with both SS and manual trans models
• Improved cold start and all around drive-ability over factory

What's Included in the turbo kit

• Fully Tuned - you send us your ECU and we send it back fully tuned. No piggy back to mess or additional tuning necessary
• Garrett GT2860RS with .86 AR upgraded to V-Band connection to exhaust manifold
• Air / Air Intercooler with puller fan
  This is the same intercooler as our Stage 1, 2, and Pro-Turbo YXZ's competing in the Championship Off-Road Series. Our intercooler has been tested to 400+hp
• Intake piping to turbo with foam air cleaner and Outerwears filter cover
• 530cc Fuel Injectors
• Coolant, Oil Lines, and necessary fittings for installation
• DLP Oil Distribution Block
• Silicone couplers and clamps necessary for installation
• 3-Bar Map Sensor
• Downpipe to connect the turbo to any YXZ slip-on (straight pipe full exhaust also available)
• Stainless Steel Turbo Exhaust Manifold
• Boost Controller

What's in included in the engine packages

Stage 1

• Yamaha 9.5:1 pistons
• Yamaha rods
• Yamaha head bolts
• Gaskets

Stage 2

• Crower rods
• JE 9.5:1 pistons
• ARP head studs
• Gaskets
